Outside

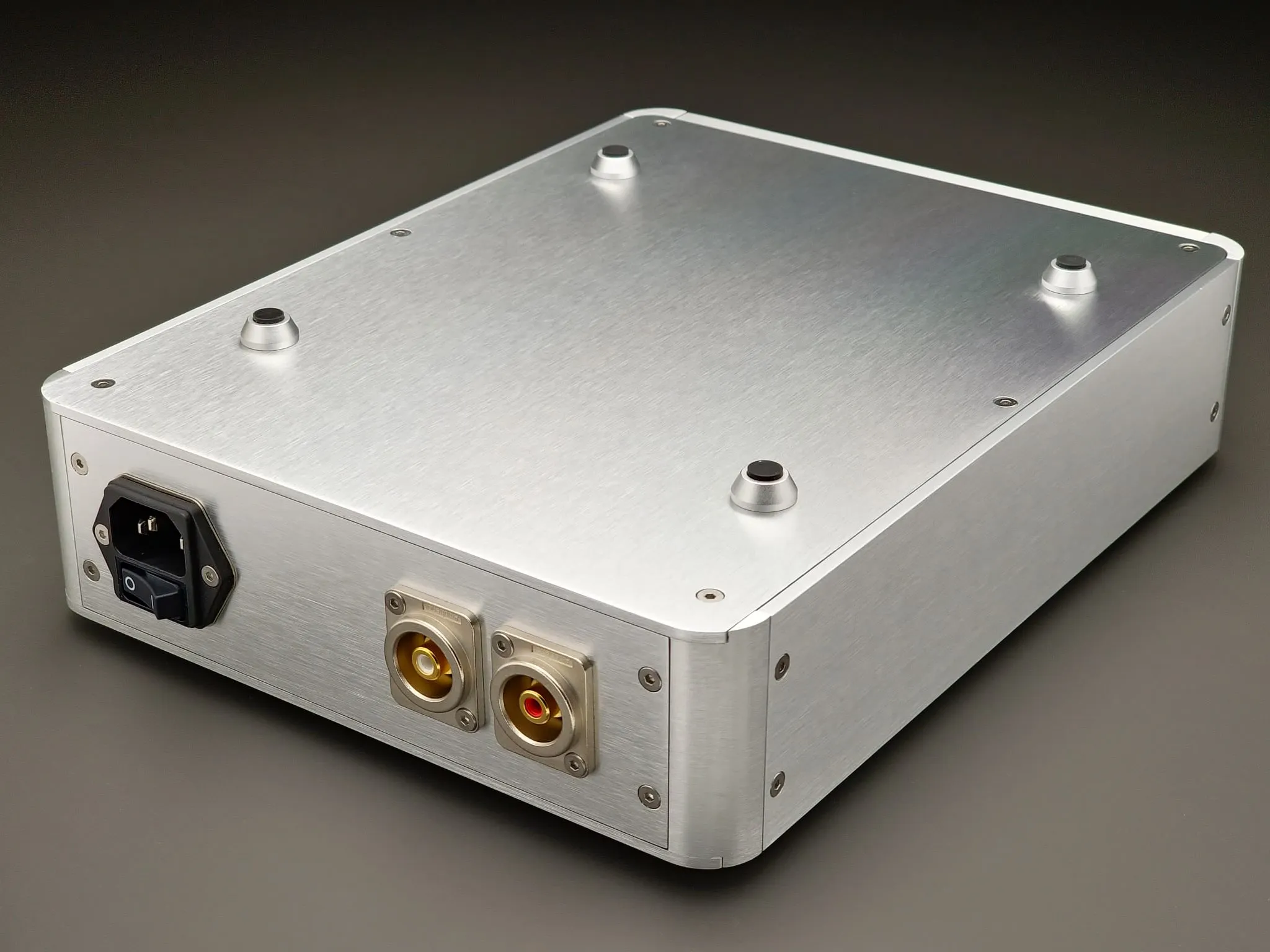

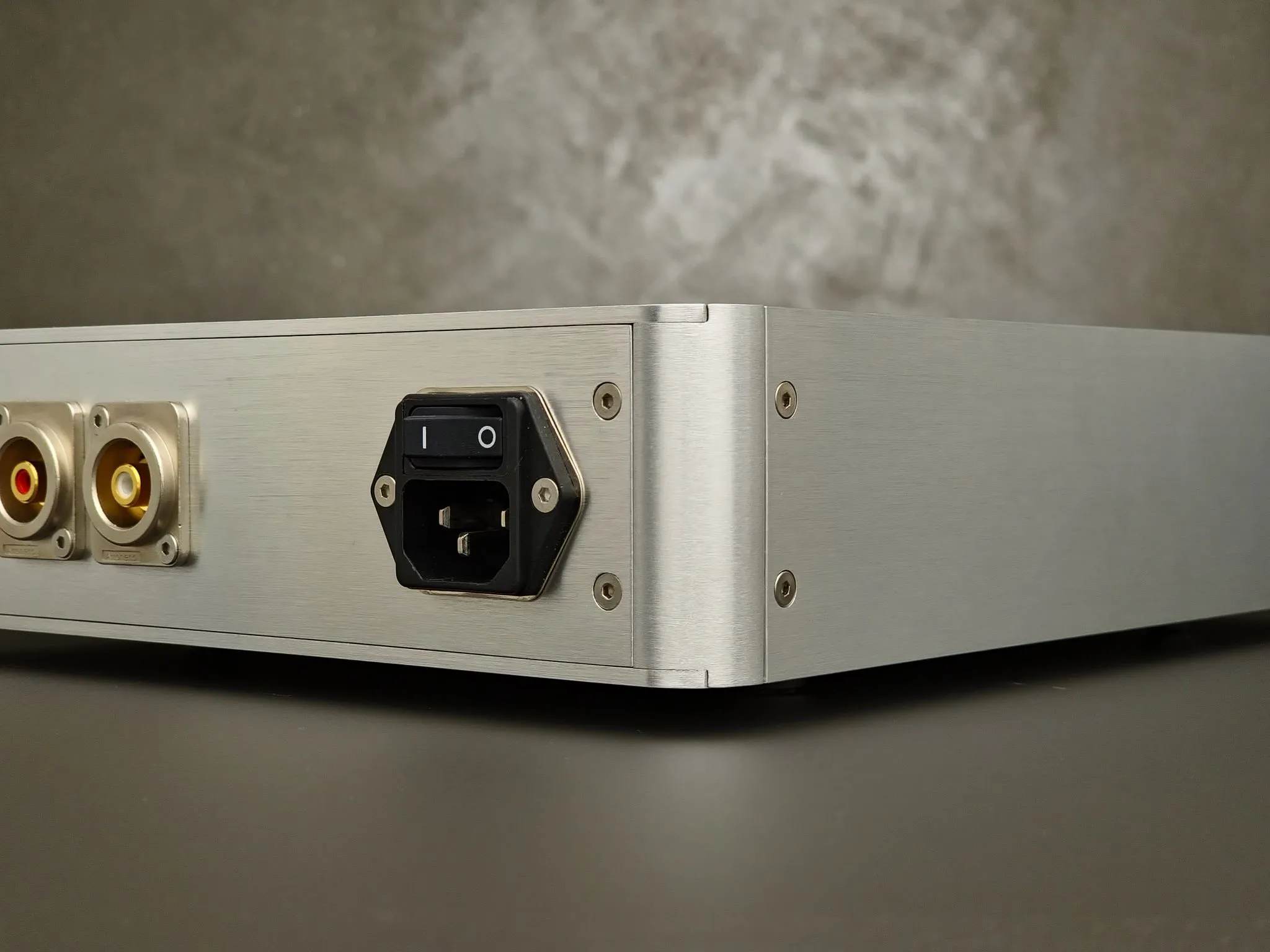

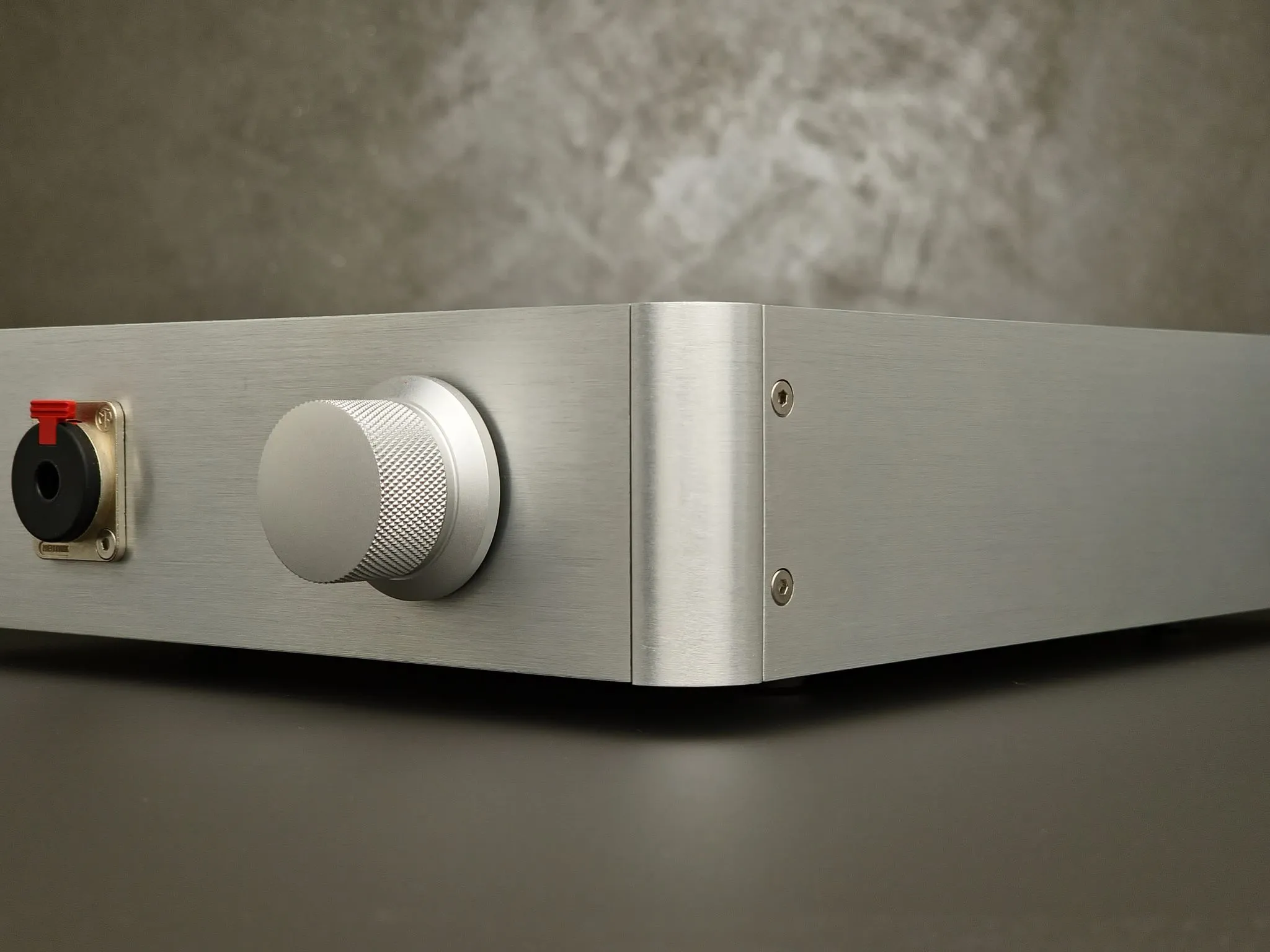

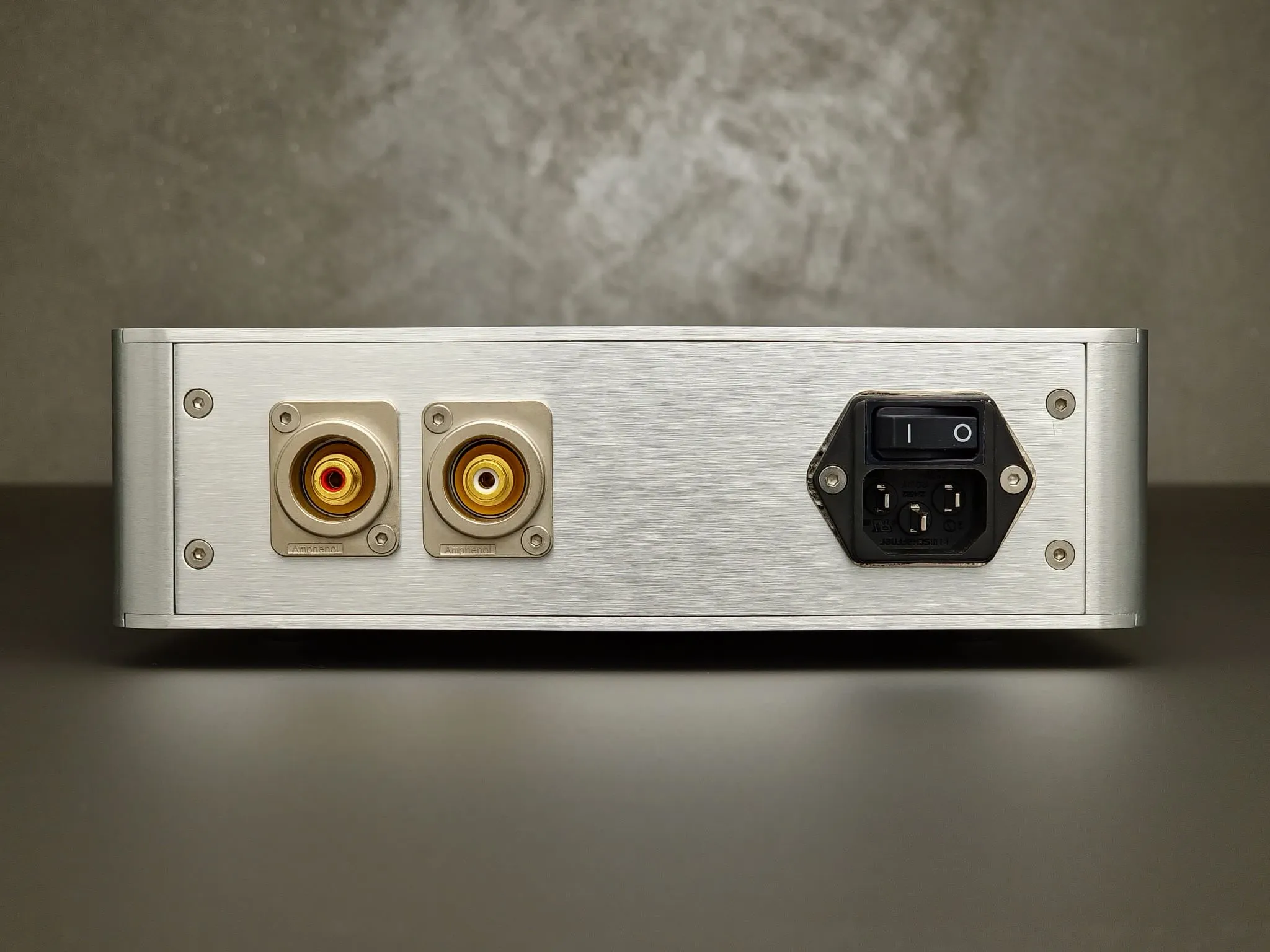

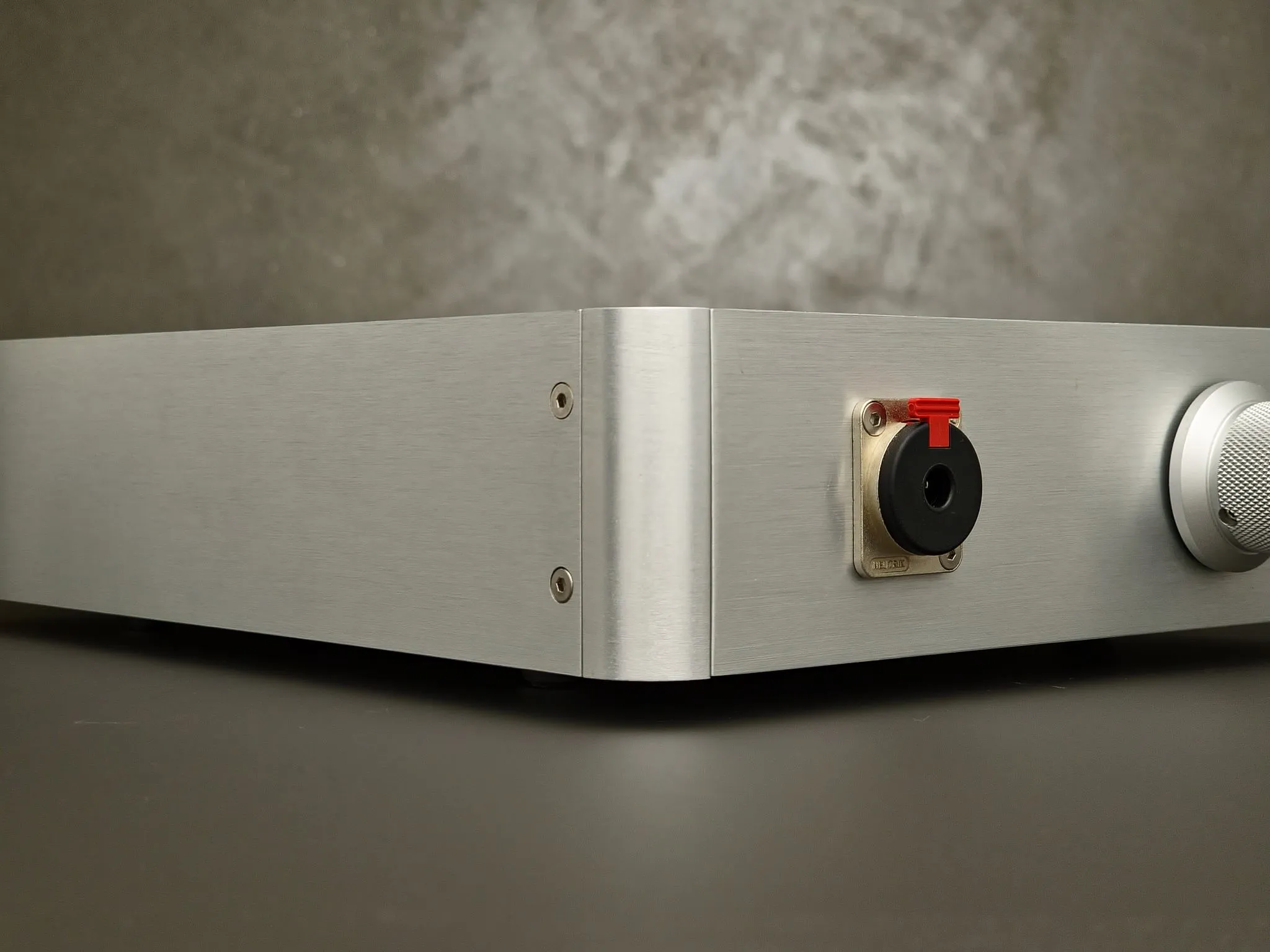

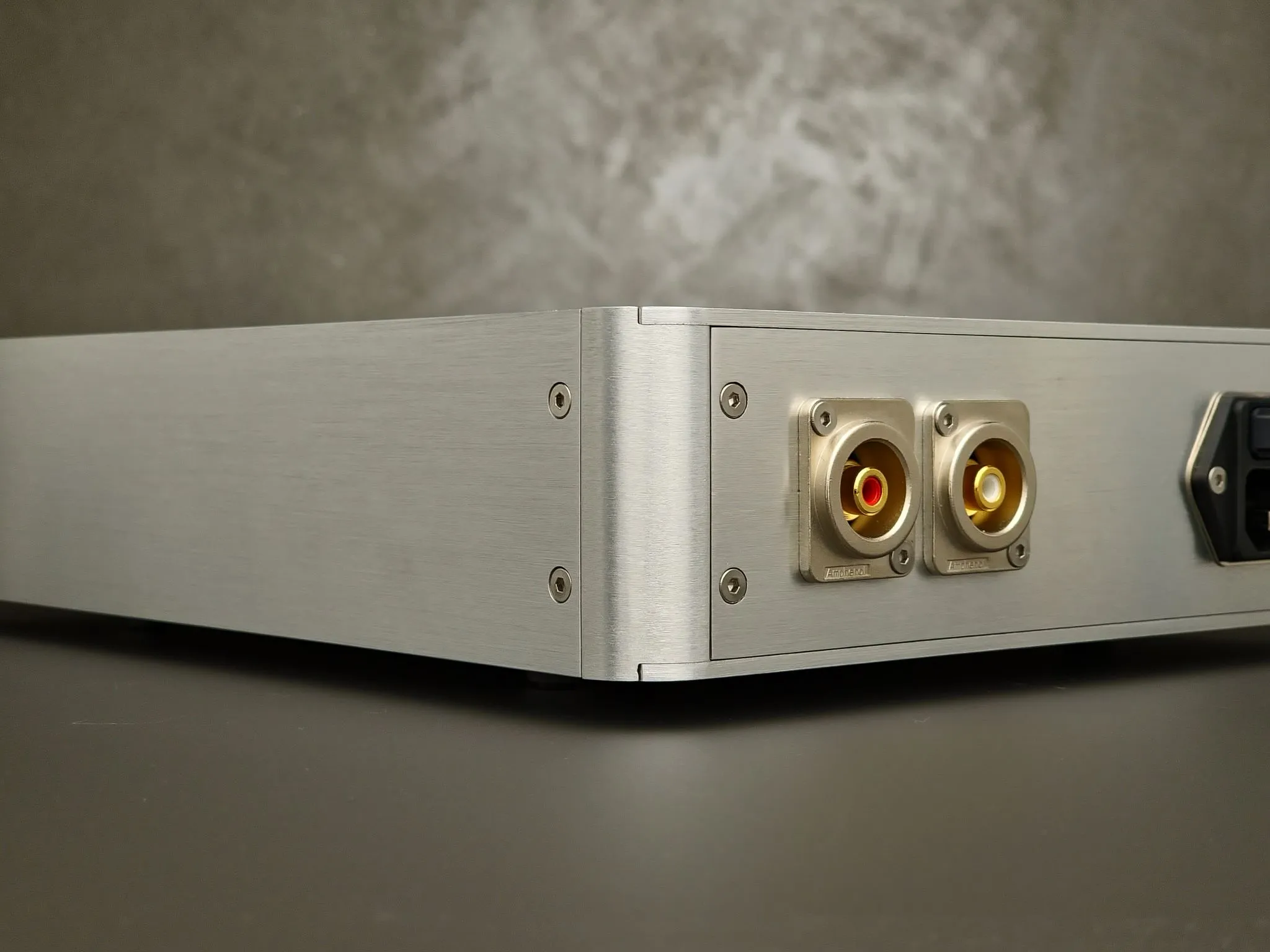

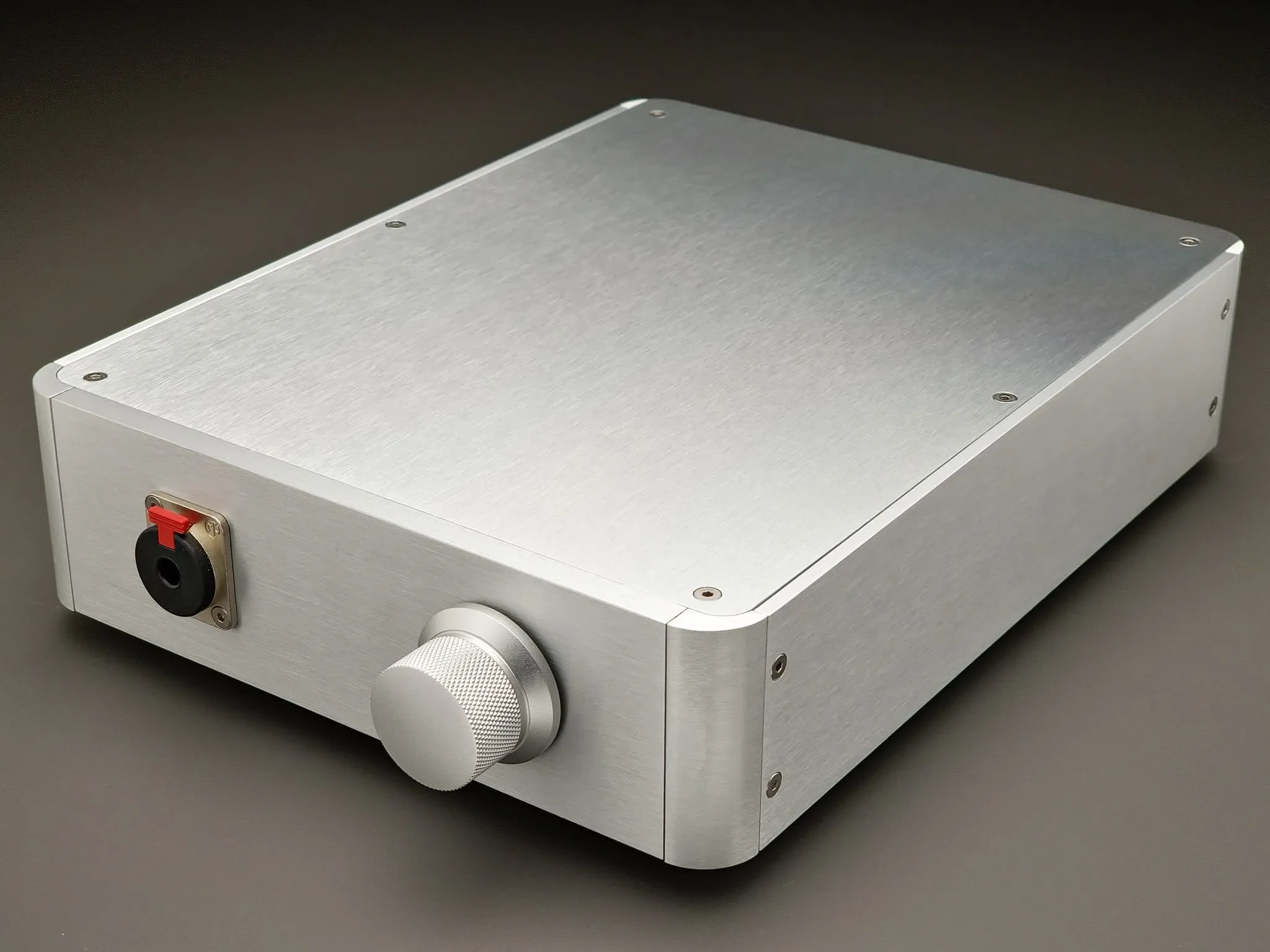

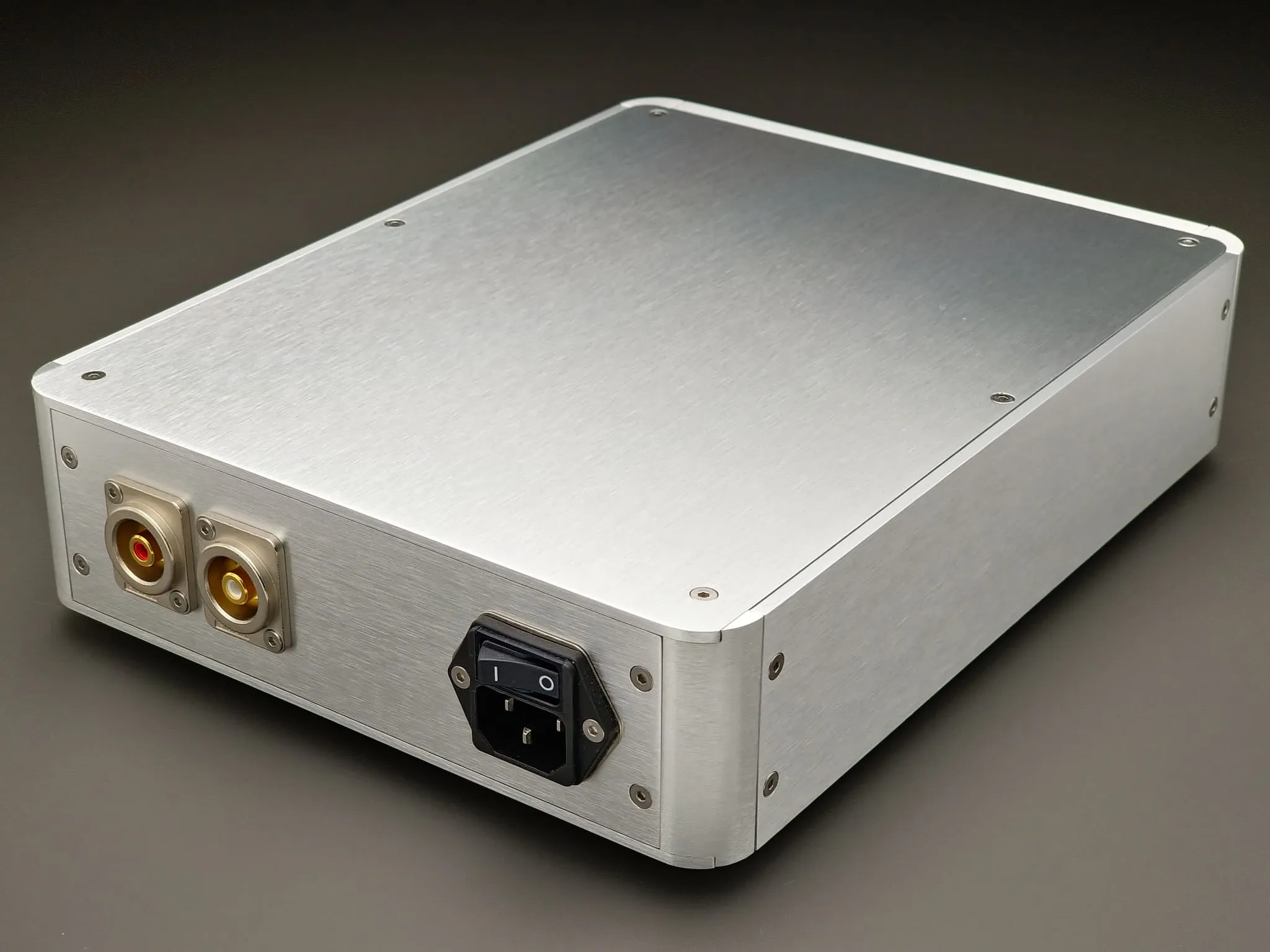

world class sockets from Neutrik® & Amphenol® • only solid brushed aluminium made in CNC process • solid aluminium knob • fully shelding with 3mm to 8mm aluminium • rubber feet under the chassis • w: 210mm x d: 350mm x h: 67mm • 3.1 kg of weight

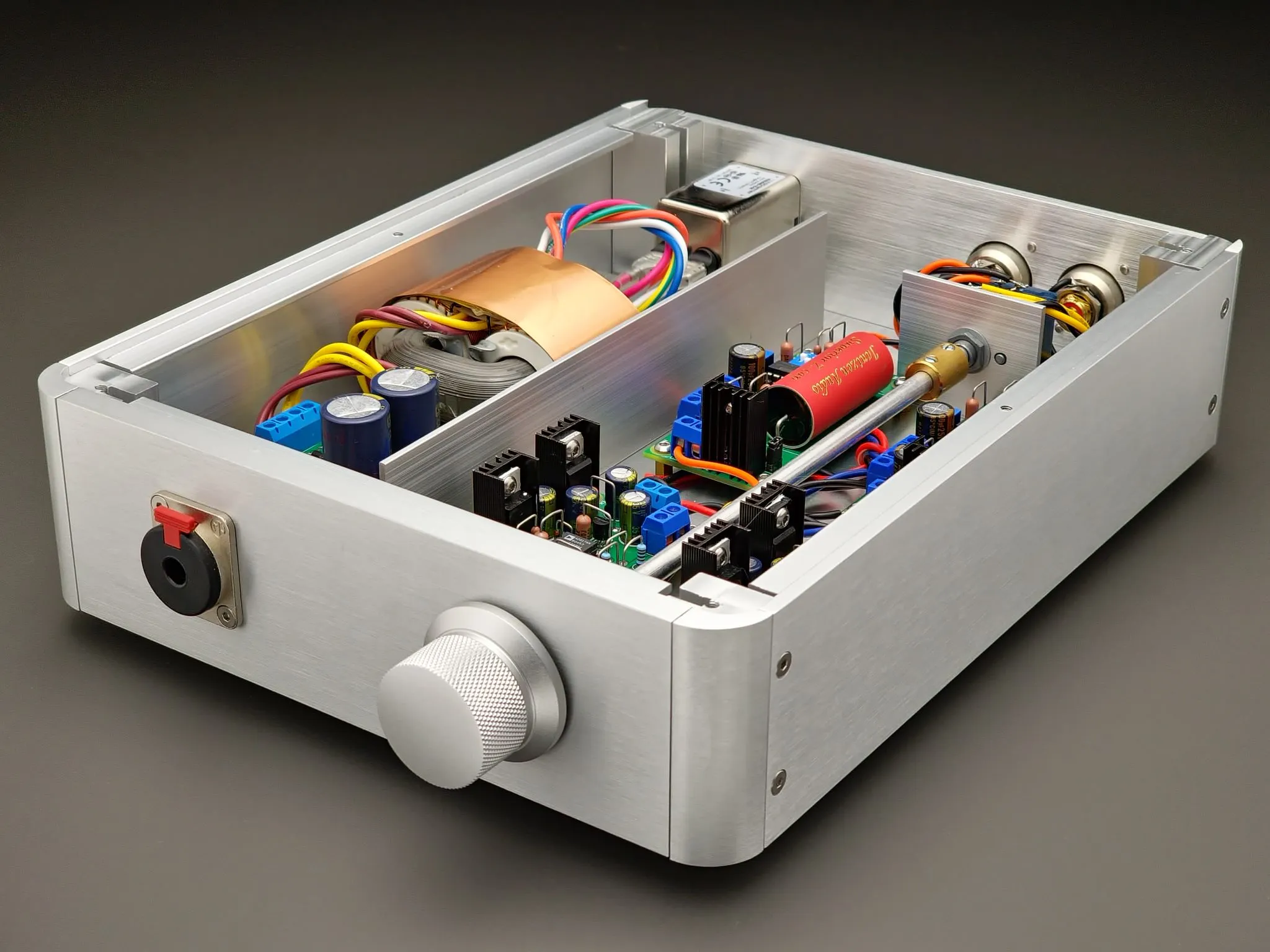

Internals
best in class Shunt voltage regulator with AC mains filtering & R-core transformer • one hi-end Jantzen® Superior Z-Class® capacitor & blue Alps® potentiometer in signal path • superior Burr-Brown® OPA627 in amplifier stage • only DALE® precision resistors, Panasonic® & Nichicon® audio capacitors • fully separated channels
Capabilities
drives any headphones with output current up to 250mA • selectable gain from x3, x6 to x11
Measurements
1 Vrms; 1000,48 Hz sine; 20 kHz BW

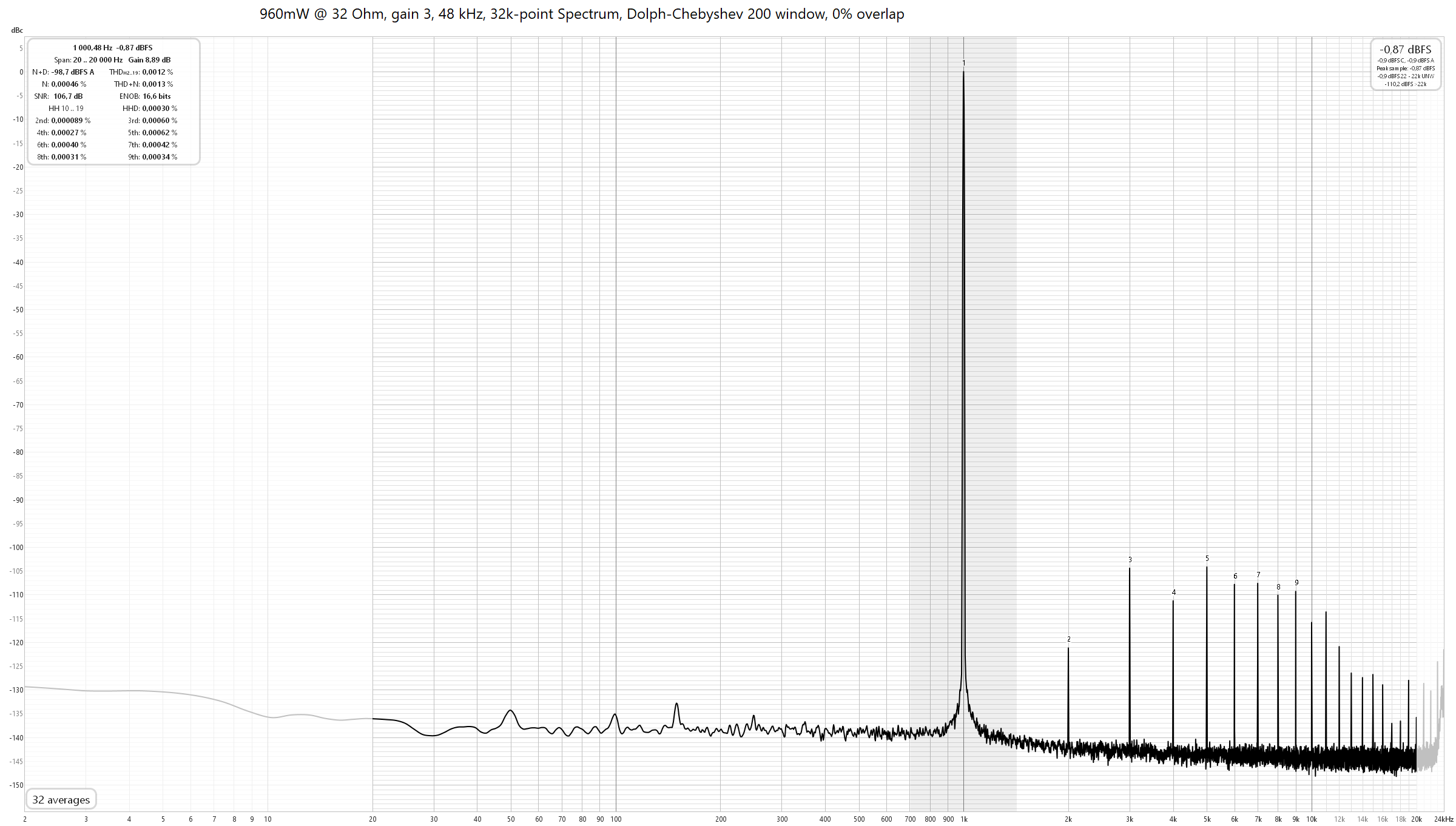

@ 960mW (32 Ohm, gain x3) – THD+N: 0,0013% – SNR: 106,7dB

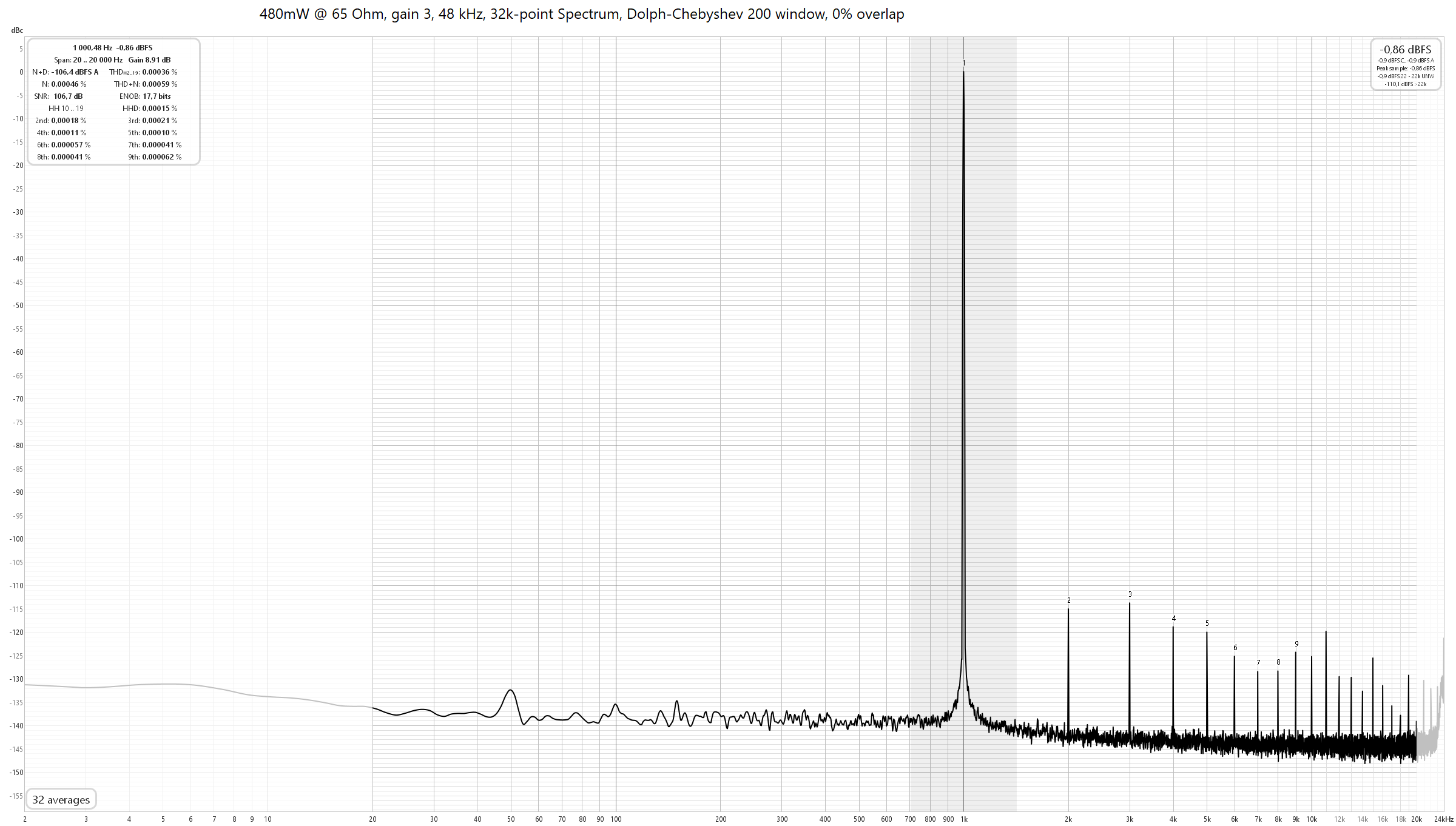

@ 480mW (65 Ohm, gain x3) – THD+N: 0,00059% – SNR: 106,7dB

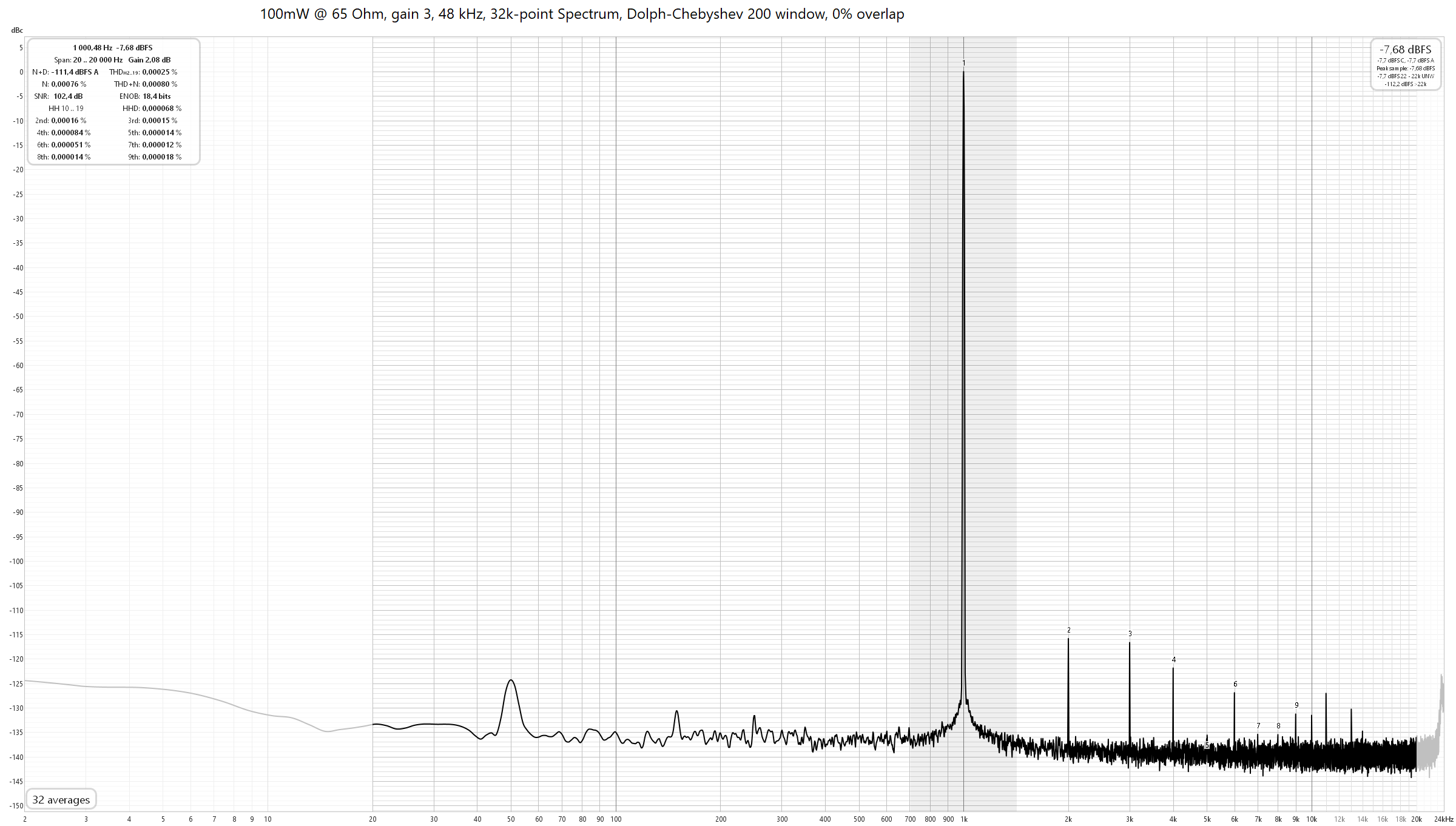

@ 100mW (65 Ohm, gain x3) – THD+N: 0,00080% – SNR: 102,4dB

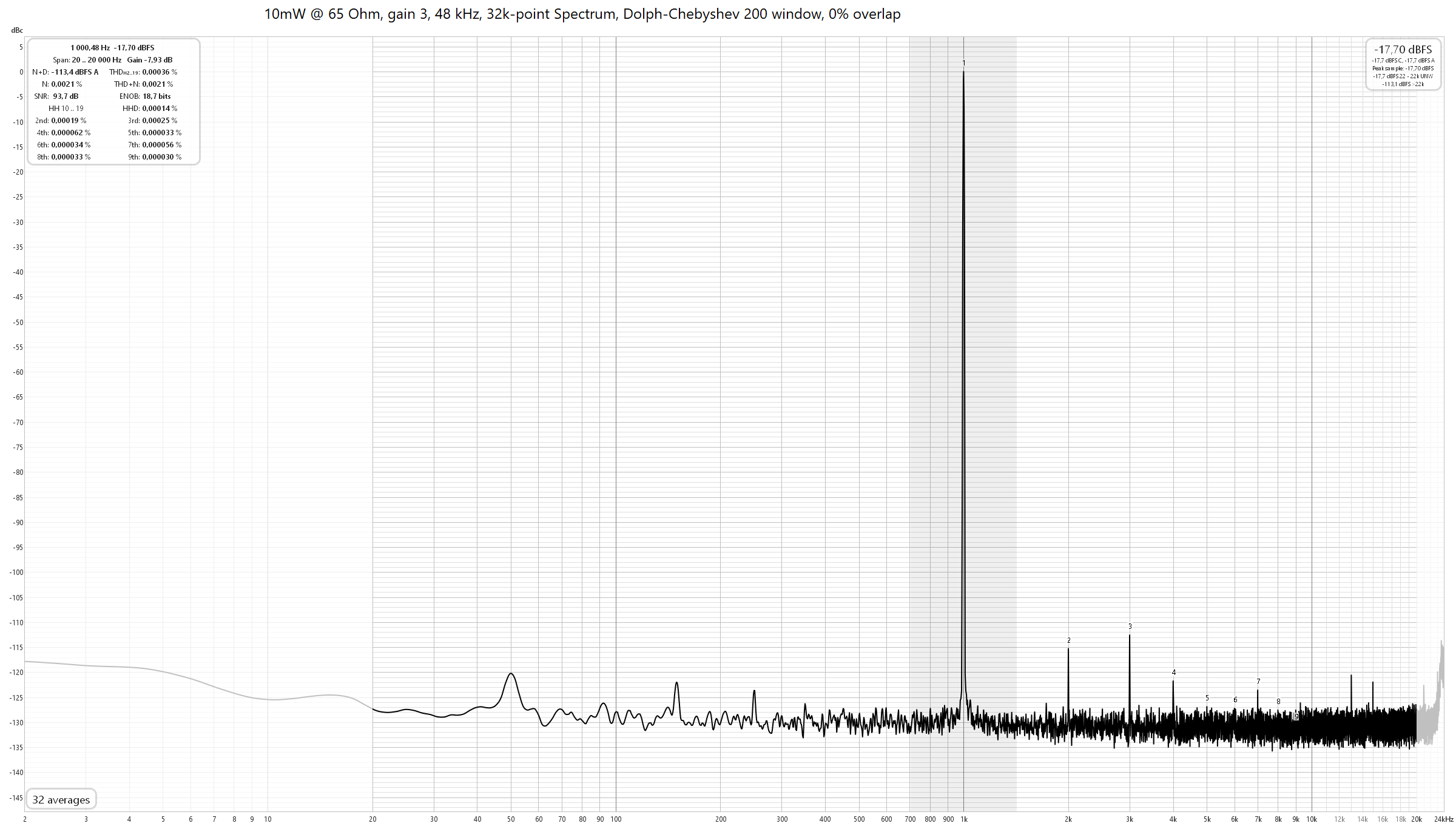

@ 10mW (65 Ohm, gain x3) – THD+N: 0,0021% – SNR: 93,7dB
Gallery
